연마 된 마그네슘 불소 (MGF2) 광학 윈도우
$4751-9 Piece/Pieces
$36010-199 Piece/Pieces
$275≥200Piece/Pieces
지불 유형: | T/T |
인 코텀: | FOB |
수송: | Air |
포트: | changchun,beijing,dalian |
모형: RQ-MgF2 Window D60*5mm
상표: CCRQ
사용자 정의 지원: OEM, ODM
원산지: 중국
사용하다: 광학
모양: PLANO
Dimension Tolerance: +0/-0.1mm
Material: Mgf2 Single Crystal
Diameter: 60mm
Surface Accuracy: lambda/4 per 25nm at 632.8nm
Thickness: 5mm
Surface Quality: 60-40

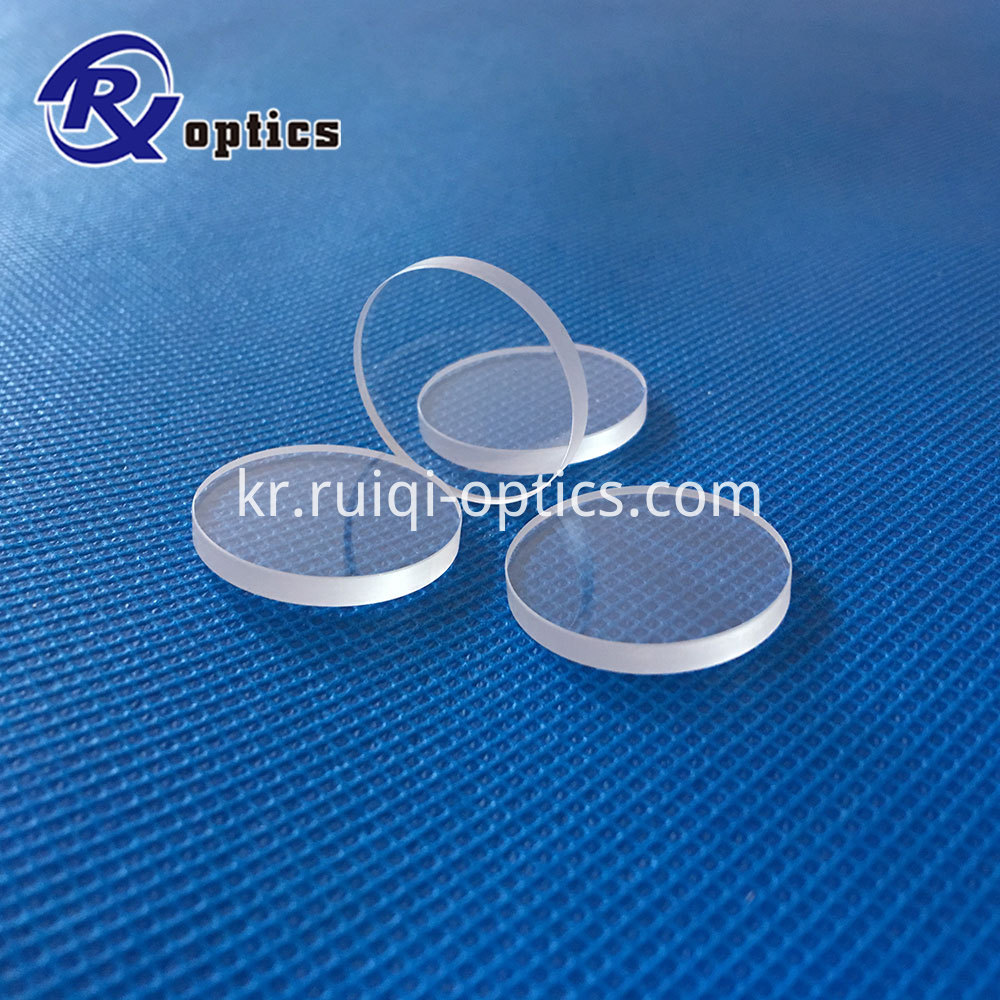

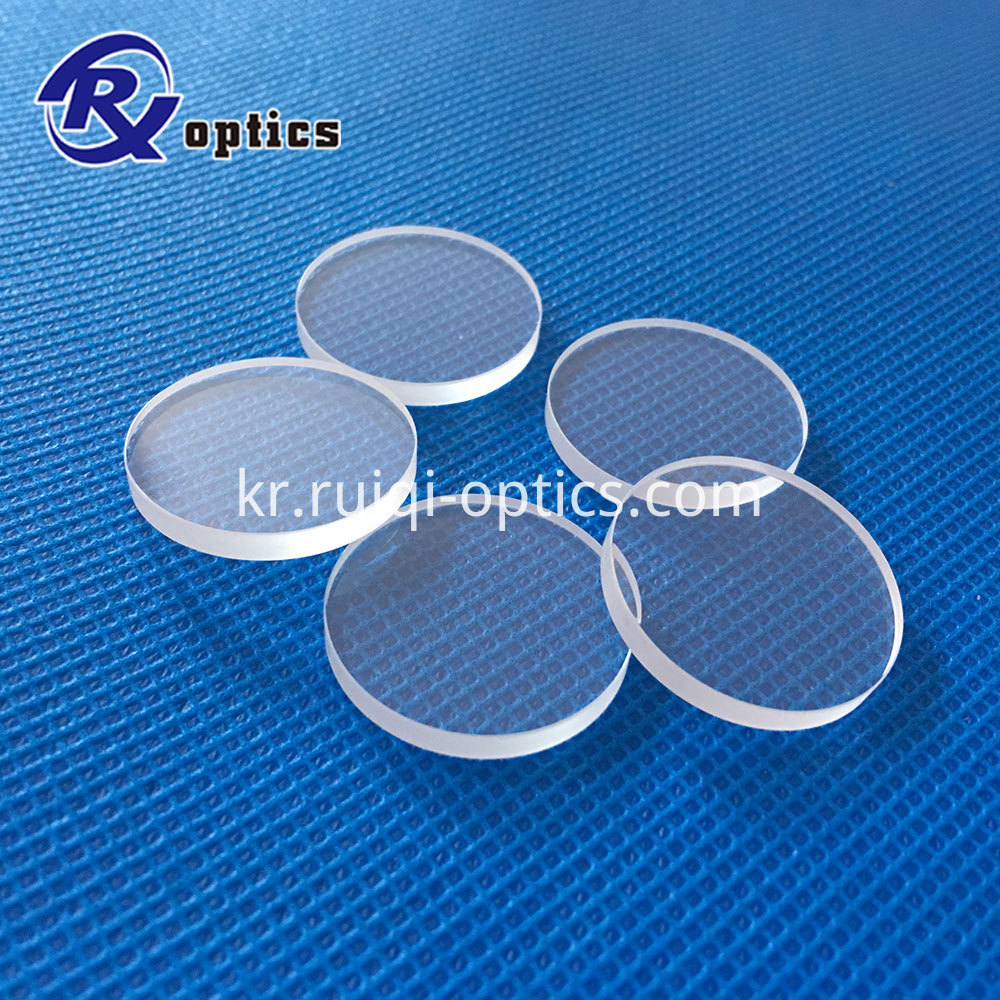

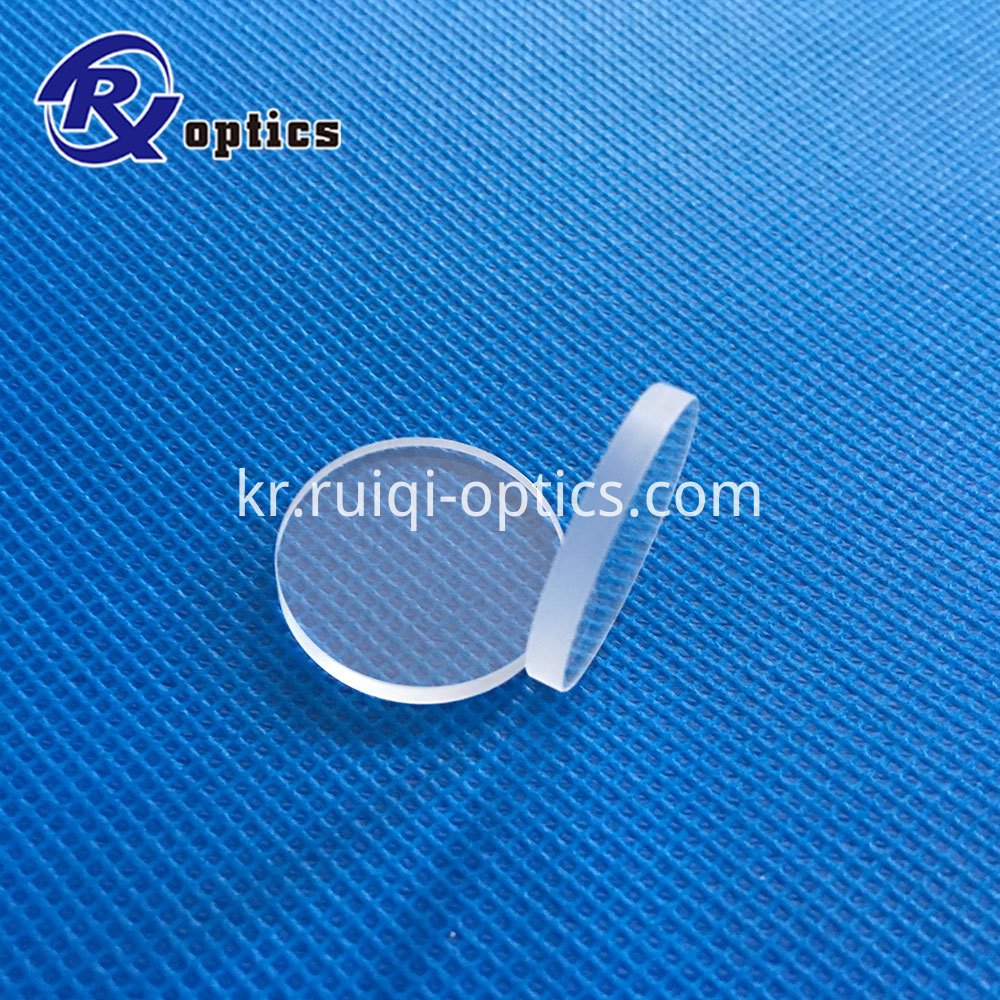

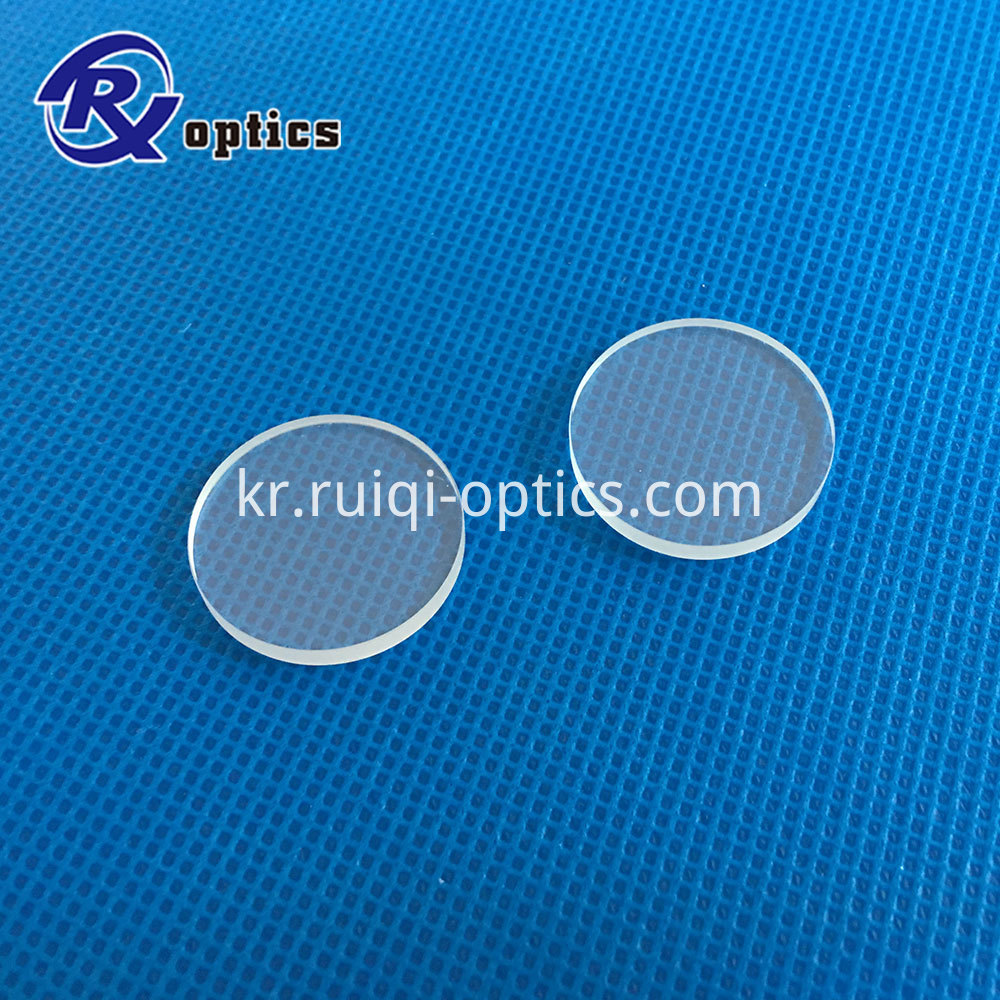

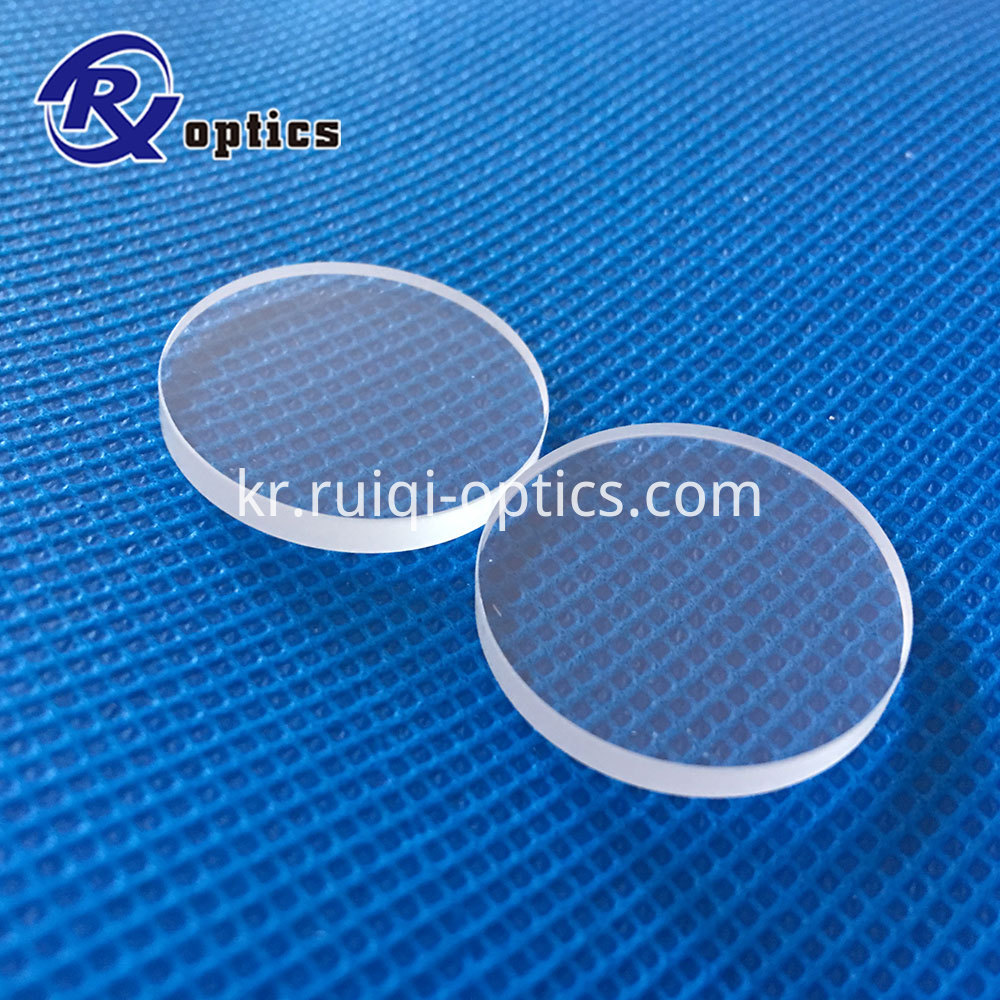

D60*5mm 연마 마그네슘 불소 (MGF2) 광학 창
MGF2 창 (Magesium flouride는 매우 넓은 범위의 파장에 대해 투명합니다. MGF2 Opticl 창 , 단일 결정 MGF2 렌즈 및이 재료로 제작 된 프리즘은 0.12μm (진공 초음파)에서 8.0μm에서 8.0μm에서 8.0μm에서 전체 파장 범위에서 사용할 수 있습니다. . 창 또는 렌즈의 평면에 수직 인 시신경.

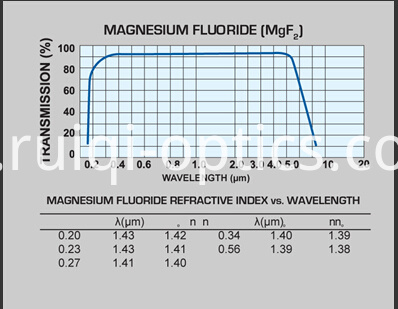

Transmission Range | 0.11 - 7.5 µ |
Crystal Structure | Tin oxide |
Cleavage Plane | Parellel to A or C axis |
Colour | colourless |
Density | 3.1766 (18°) |
Melting Point (°) | 1255 |
Reflection Loss | 4.8% (visible) for 2 surfaces |
Solubility index | 0.0076gm/100gm water / 18°C |
Hardness (Knoop) | 415kg/mm2 |
Thermal Conductivity (cal/cm sec°C) | 0.3W (m K) at (13°C) |
Thermal Expansion coefficient (/°C) |
18.8x10-6(Parellel to C axis) 1.31x10-6(Vertical to C axis) |
우리는 깊은 자외선 (엑시머 레벨), 자외선 및 적외선 수준의 칼슘 불소 물질 및 성분을 제공 할 수 있습니다.
우리는 <1111>, <110>, <100> 등과 같은 모든 종류의 오리엔테이션을 가지고 있습니다.
둥근 막대, 사각형 플레이트, 스텝, 프리즘, 웨지 등과 같은 모든 재료 모양이 있습니다.
우리는 재고에 모든 종류의 기존 판, 구형 및 웨지를 가지고 있습니다.
우리는 4mm-200mm 모노 결정 및 폴리 결정 재료 및 광학 요소의 크기를 가지고 있습니다.
기술 사양:
Material |
MgF2 Single Crystal |
Diameter |
60+/-0.1mm |
Thickness |
5+0/-0.1mm |
S/D |
60/40 |
Parallelism |
3' |
Surface Accuracy |
1lambda |
다른 크기와 사양은 사용자 정의로 허용됩니다
